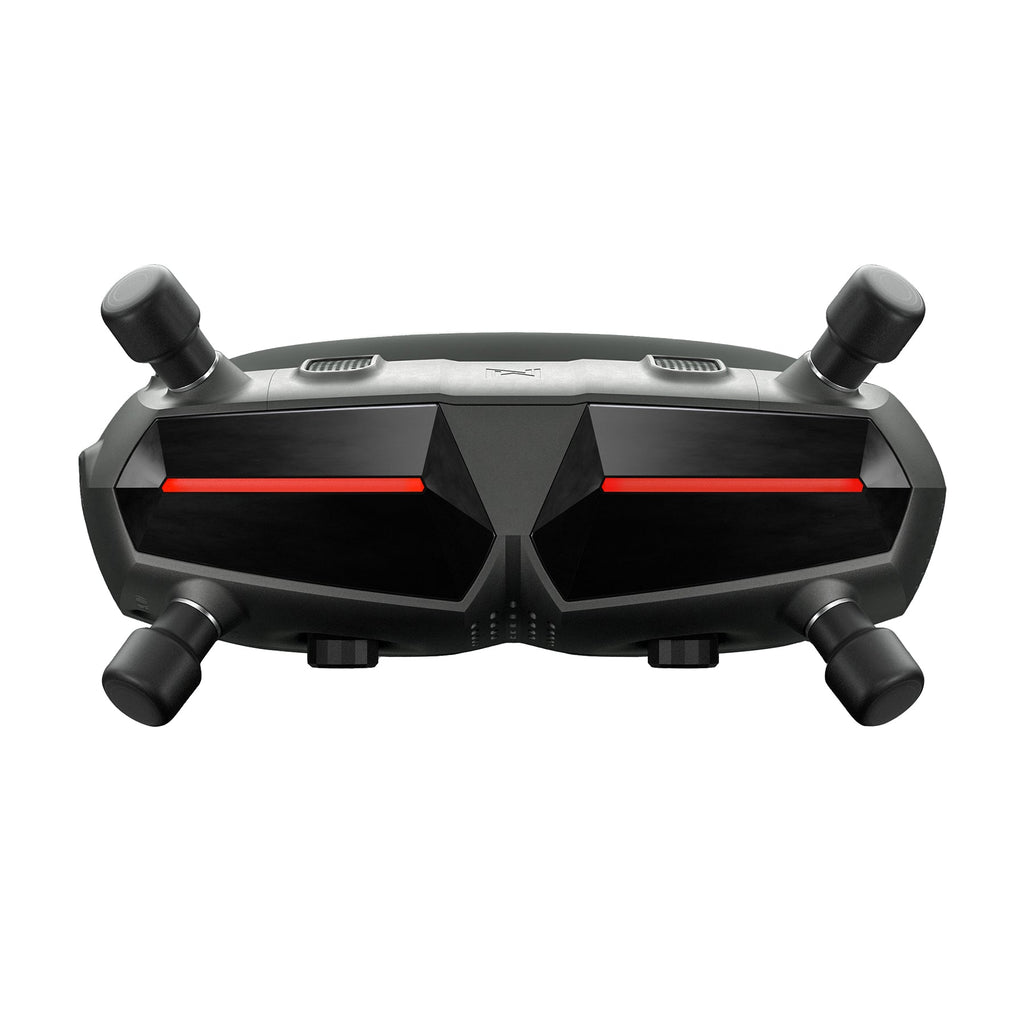

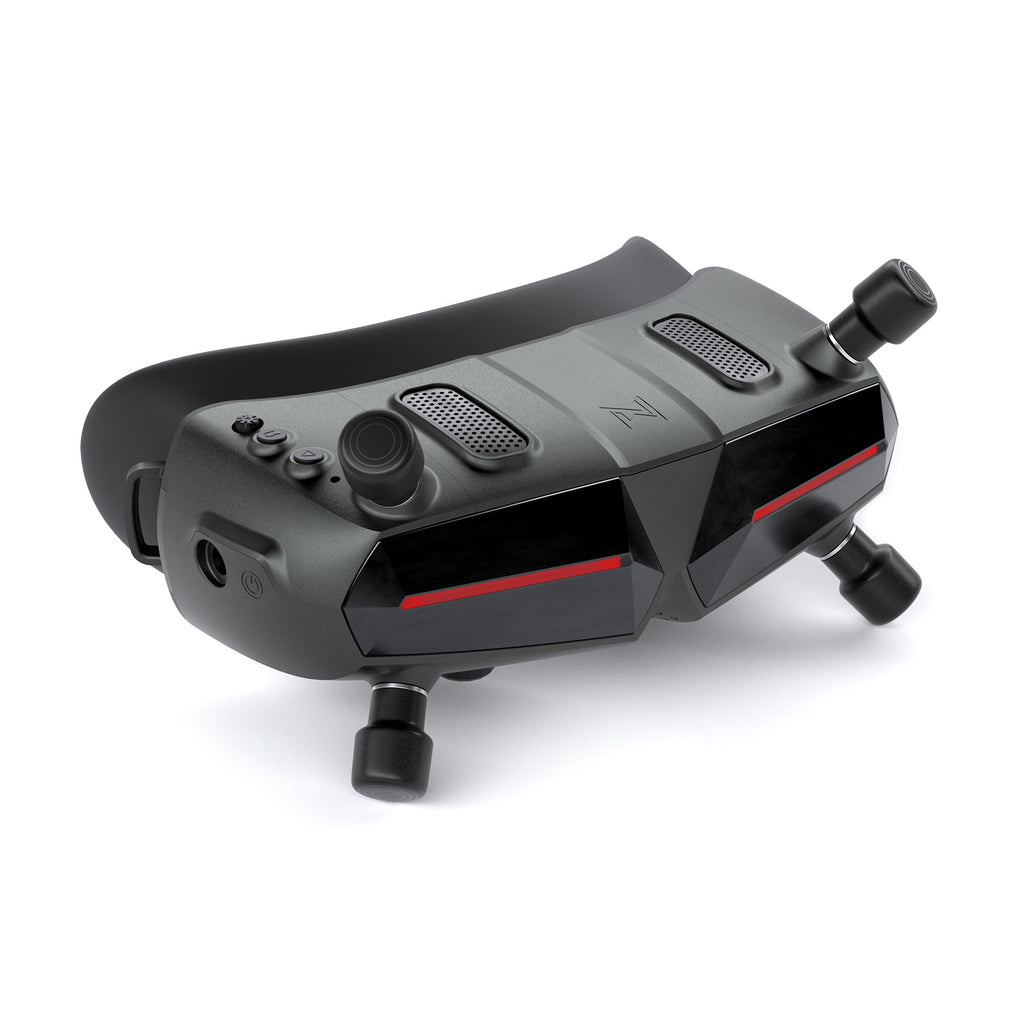

Caddx Avatar Goggles X
Caddx / WalksnailFPV Goggles
In stockCaddx Avatar Goggles X
- 1920×1080 OLED, 100Hz Screen
- 50° FOV
- Avg. 22 ms Latency
- 1080p/100fps Video
- 290 g Weight
Flagship HD FPV goggles for the Walksnail Avatar digital video system.
- Brand
- Caddx / Walksnail
- Category
- Radio Controllers & Goggles
- Authenticity
- 100% genuine
Complete your kit
-
Caddx Goggles Battery $49.00
-
Caddx Avatar GT2 Kit $229.00
-
Caddx Avatar Pro Kit (Dual) $199.00
-
Caddx Avatar Repeater $89.00
- 100% genuineFrom manufacturers & authorised distributors
- Tracked shippingTracking link by email or WhatsApp
- Warranty & careManufacturer warranty, parts & repairs
Shipping & delivery
Delivery times vary by region and usually take a maximum of 14 working days. A tracking link is sent by email or WhatsApp once your order ships.
Warranty, returns & repairs
Warranty coverage, returns and refunds follow the manufacturer's terms for each product. Spare parts are in the Accessories section, and our team can advise on repairs.
Batteries & flying rules
Lithium batteries ship in line with international carrier and aviation safety rules, which can affect the delivery method and time. Drone rules vary by country and weight class — check with your local civil aviation authority before flying.
Goggles
- Model
- Avatar HD Goggles X
- System
- Avatar HD system
- Screen material
- OLED
- Screen resolution
- 1920×1080 / 100Hz
- FOV
- 50°
- IPD range
- 57–72 mm
- Diopter adjustment
- +2.0 to −6.0
- Power input
- 7–25.2 V (2S–6S)
- Weight
- 290 g
- I/O interface
- HDMI out, HDMI in, 5-pin 3.5 mm audio, DC5.5×2.1 mm, microSD slot
- microSD card
- Up to 256 GB
- Built-in gyro
- Yes
- Infrared sensing
- Yes (auto screen on/off)
- AV input
- Yes (analog)
Video transmission
- Communication frequency
- 5.725–5.850 GHz
- Transmitter power (EIRP)
- FCC <30 dBm; CE <14 dBm; SRRC <20 dBm; MIC <25 dBm
- Transmission resolution
- 1080p 100fps; 1080p 60fps; 720p 100fps; 720p 60fps
- Max bitrate
- 50 Mbps
- Latency
- Avg. 22 ms
- Transmission distance
- >4 km
- Channels
- 8
- Antenna gain (avg.)
- 2 dBi
- Polarization
- LHCP
From the manufacturer's official specifications.
