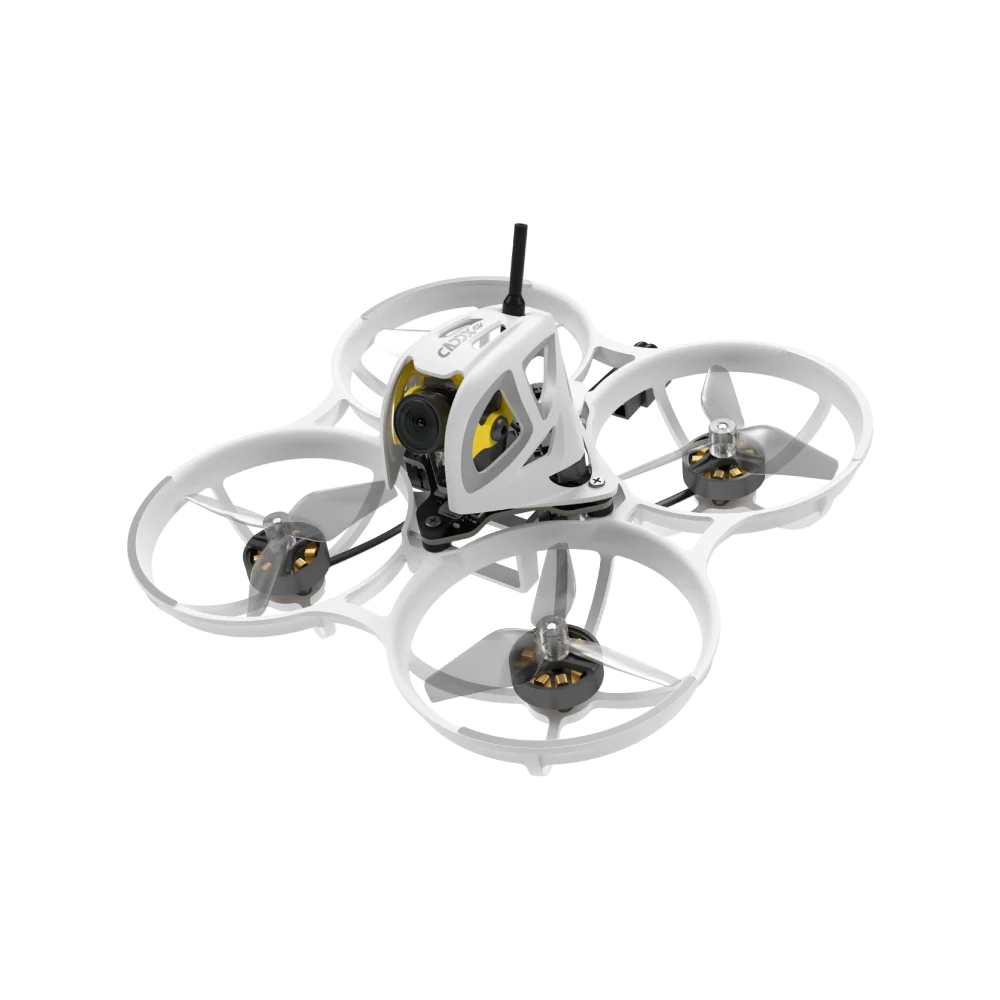

Caddx Curve Micro 16 HD Tiny Whoop
CaddxFPV Drone (Tiny Whoop)
In stockCaddx Curve Micro 16 HD Tiny Whoop
- 6 min (5–7 min) Flight time
- 48 g Weight
- Up to 1080p/120fps Video
- 35 ms Latency
- 500 mW VTX power
Micro tiny-whoop-class HD FPV drone, ideal for indoor flying and beginners.
- Brand
- Caddx
- Category
- FPV Drones & Kits
- Authenticity
- 100% genuine
Complete your kit
-
Caddx Curve A30 Charger $45.00
-
Caddx Avatar Goggles L $549.00
- 100% genuineFrom manufacturers & authorised distributors
- Tracked shippingTracking link by email or WhatsApp
- Warranty & careManufacturer warranty, parts & repairs
Shipping & delivery
Delivery times vary by region and usually take a maximum of 14 working days. A tracking link is sent by email or WhatsApp once your order ships.
Warranty, returns & repairs
Warranty coverage, returns and refunds follow the manufacturer's terms for each product. Spare parts are in the Accessories section, and our team can advise on repairs.
Batteries & flying rules
Lithium batteries ship in line with international carrier and aviation safety rules, which can affect the delivery method and time. Drone rules vary by country and weight class — check with your local civil aviation authority before flying.
Drone
- Name
- Curve Micro 16
- VTX
- Walksnail Ascent Lite+
- Flight controller
- AXON 1S AIO V2.0
- ESC
- 1S 12A
- Receiver
- ELRS V3.5.0
- Motors
- 1102 24000KV brushless
- Propellers
- HQ 40mm 1.6×1×3
- Wheelbase
- 75 mm
- Weight
- 48 g
- Power port
- A30
- Recommended battery
- 1S 580 / 680 mAh LiPo
- Flight time
- 6 min (approx. 5–7 min)
Camera & VTX
- Video
- 1080p & 720p at 60/100/120fps
- Latency
- 35 ms
- VTX power
- 500 mW
- FOV
- 147°
- Live audio
- Built-in microphone
- Compatible receivers
- Ascent goggles, Ascent VRX, Ascent VRX Pro
Flight controller
- Processor
- STM32G473
- Gyroscope
- ICM42688 / BMI270
- Blackbox
- 16 MB
- BEC
- 5 V 3 A
- FC voltage
- 1S
- ESC current
- 12 A continuous; 18 A peak
- Motor port
- JST1.25-3P
Included charger
- Type
- 6-channel, A30 connector
- Battery type
- LiHV 4.35 V
- Input
- USB-C PD/BC1.2, 5–12 V
- Max input power
- 30 W
- Max charging current
- 1 A
- Dimensions
- 101.5 × 30 × 14.5 mm
From the manufacturer's official specifications.
