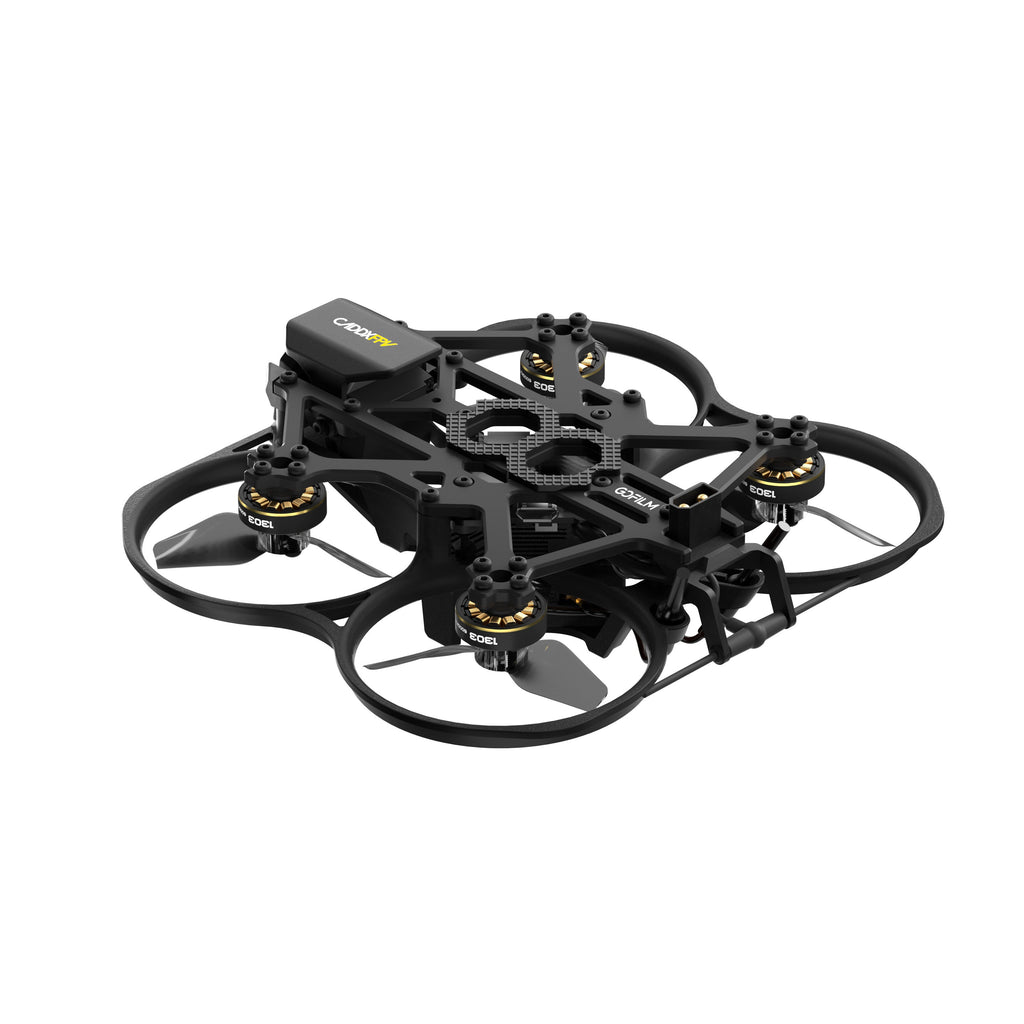

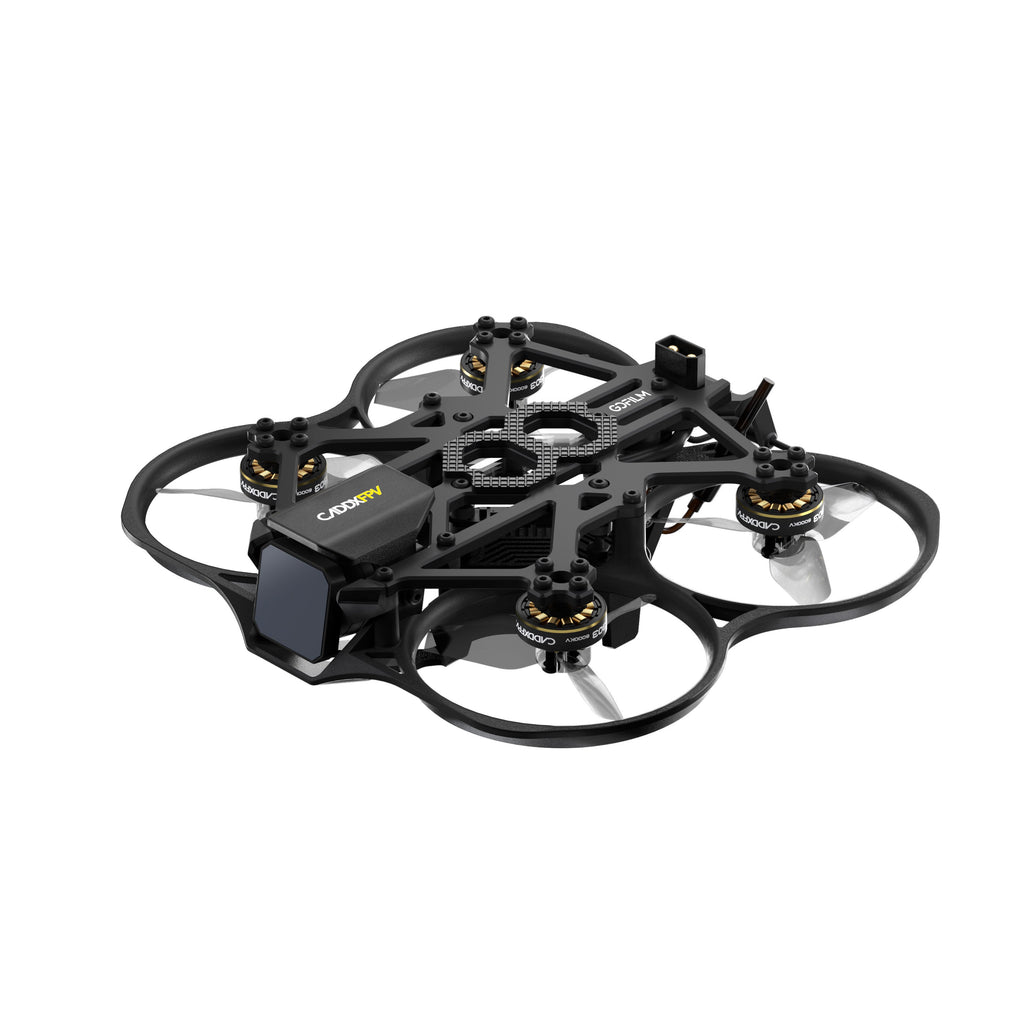

Caddx Gofilm 20
CaddxFPV Drone
In stockCaddx Gofilm 20
- About 5.5 min (4S 650mAh) Flight time
- 115 ±5 g Weight
- 4K/60fps Video
- Avg. 22 ms Latency
- Starlight, 160° FOV Camera
A 2-inch cinewhoop built for cinematic FPV filming. It flies with the Walksnail Avatar Moonlight kit — a starlight sensor that records true 4K/60fps with a 160° field of view, stabilised in-camera (EIS) or later with Gyroflow — so footage stays clean from daylight to dusk.
- Light and agile: about 115 g on a 94 mm frame with 1303 6000KV motors and 2-inch props
- Built-in ELRS 2.4G receiver on an F405 all-in-one flight controller
- Runs on 3–4S LiPo/LiHV (XT30); about 5.5 minutes on a 4S 650 mAh pack
- Low-latency digital video (about 22 ms average)
What you need to fly: the drone comes without a battery, radio or goggles. Add a 3–4S battery, an ELRS radio and Walksnail goggles such as the Caddx Avatar Goggles X.
- Brand
- Caddx
- Category
- FPV Drones & Kits
- Authenticity
- 100% genuine
Complete your kit
-
Caddx Curve A30 Charger $45.00
-
Caddx Avatar Goggles X $899.00
- 100% genuineFrom manufacturers & authorised distributors
- Tracked shippingTracking link by email or WhatsApp
- Warranty & careManufacturer warranty, parts & repairs
Shipping & delivery
Delivery times vary by region and usually take a maximum of 14 working days. A tracking link is sent by email or WhatsApp once your order ships.
Warranty, returns & repairs
Warranty coverage, returns and refunds follow the manufacturer's terms for each product. Spare parts are in the Accessories section, and our team can advise on repairs.
Batteries & flying rules
Lithium batteries ship in line with international carrier and aviation safety rules, which can affect the delivery method and time. Drone rules vary by country and weight class — check with your local civil aviation authority before flying.
Drone
- Model
- Gofilm 20
- Flight controller
- CADDXF4_AIO_ELRS
- VTX
- Walksnail Avatar Moonlight Kit
- Wheelbase
- 94 mm
- Motors
- 1303 6000KV
- Propellers
- HQProp T2×2×3 (2-inch)
- Weight
- 115 ±5 g
- Dimensions
- 133 × 123 × 39 mm
- Flight time
- About 5.5 min (4S 650 mAh)
- Receiver
- ELRS 2.4G
- Battery connector
- XT30
- Supported battery
- 3–4S LiPo/LiHV
Flight controller
- MCU
- STM32F405RGT6
- Gyro
- ICM42688
- Barometer
- BMP280
- Receiver
- ELRS V3.0 (UART)
- ESC
- 20A 4-in-1
- Blackbox
- 8 MB
- Mounting
- 25.5 × 25.5 mm
Camera & VTX (Moonlight Kit)
- Sensor
- Starlight sensor
- FOV
- Max 160°
- Aperture
- F2.1
- ISO
- 100–25600
- Recording
- 4K 30/60fps; 2.7K 30/60fps; 1080p 100/60fps; 720p 60fps
- Max bitrate
- 150 Mbps
- Video format
- MP4 (H.264)
- Stabilization
- Built-in EIS; Gyroflow support
- Latency
- Avg. 22 ms
- Communication frequency
- 5.725–5.850 GHz
- Transmitter power (EIRP)
- FCC <30 dBm; CE <14 dBm; SRRC <20 dBm; MIC <25 dBm
- Memory card
- U3 microSD, up to 256 GB
- Antennas
- 2 (IPEX)
- Weight
- 38.5 g (antenna not included)
From the manufacturer's official specifications.
