Caddx Protos RTF Kit
CaddxFPV Drone
In stockCaddx Protos RTF Kit
- 8.5 ±0.5 min Flight time
- 104.4 ±1.5 g Weight
- 1/2.8", 1080p/60fps, 147° Camera
- Avg. 35 ms Latency
- Up to 3 km Range

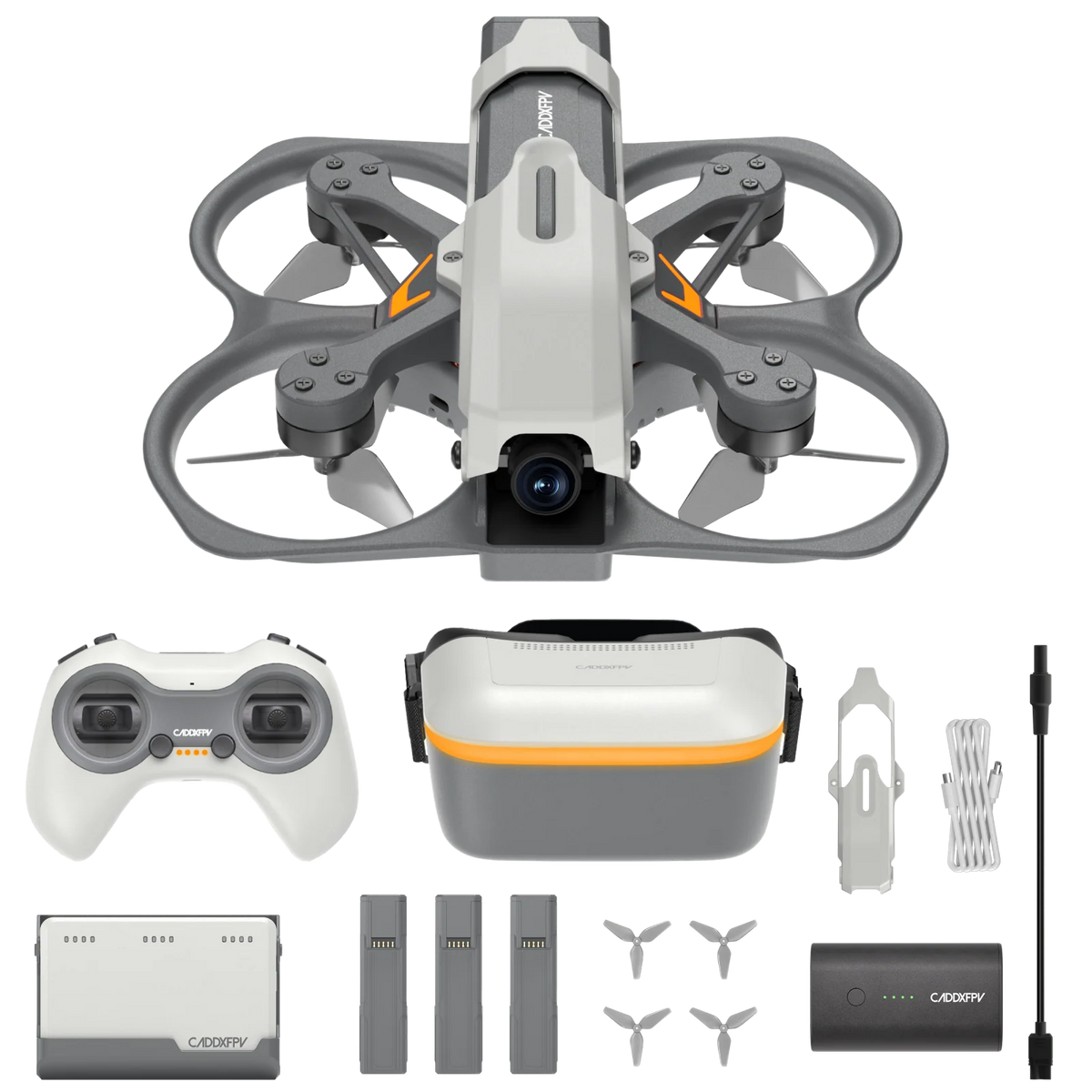

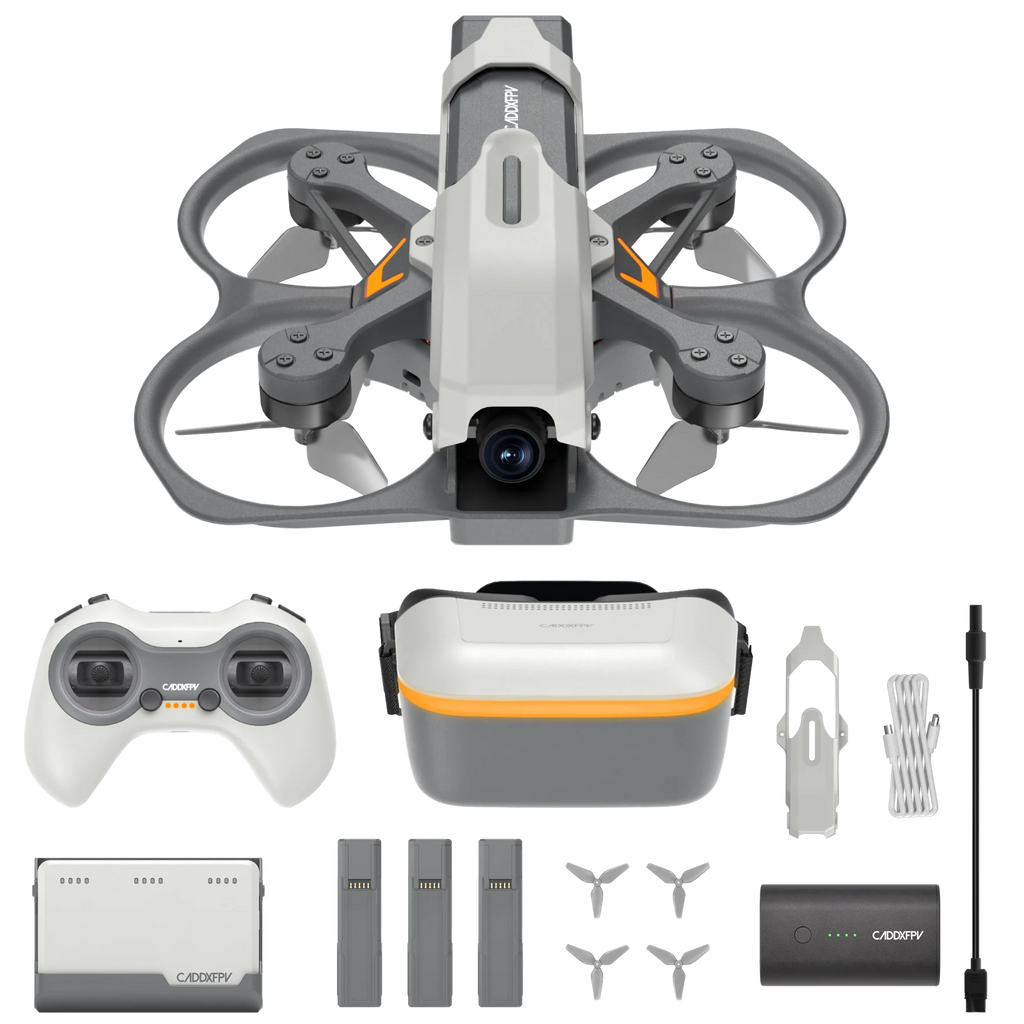

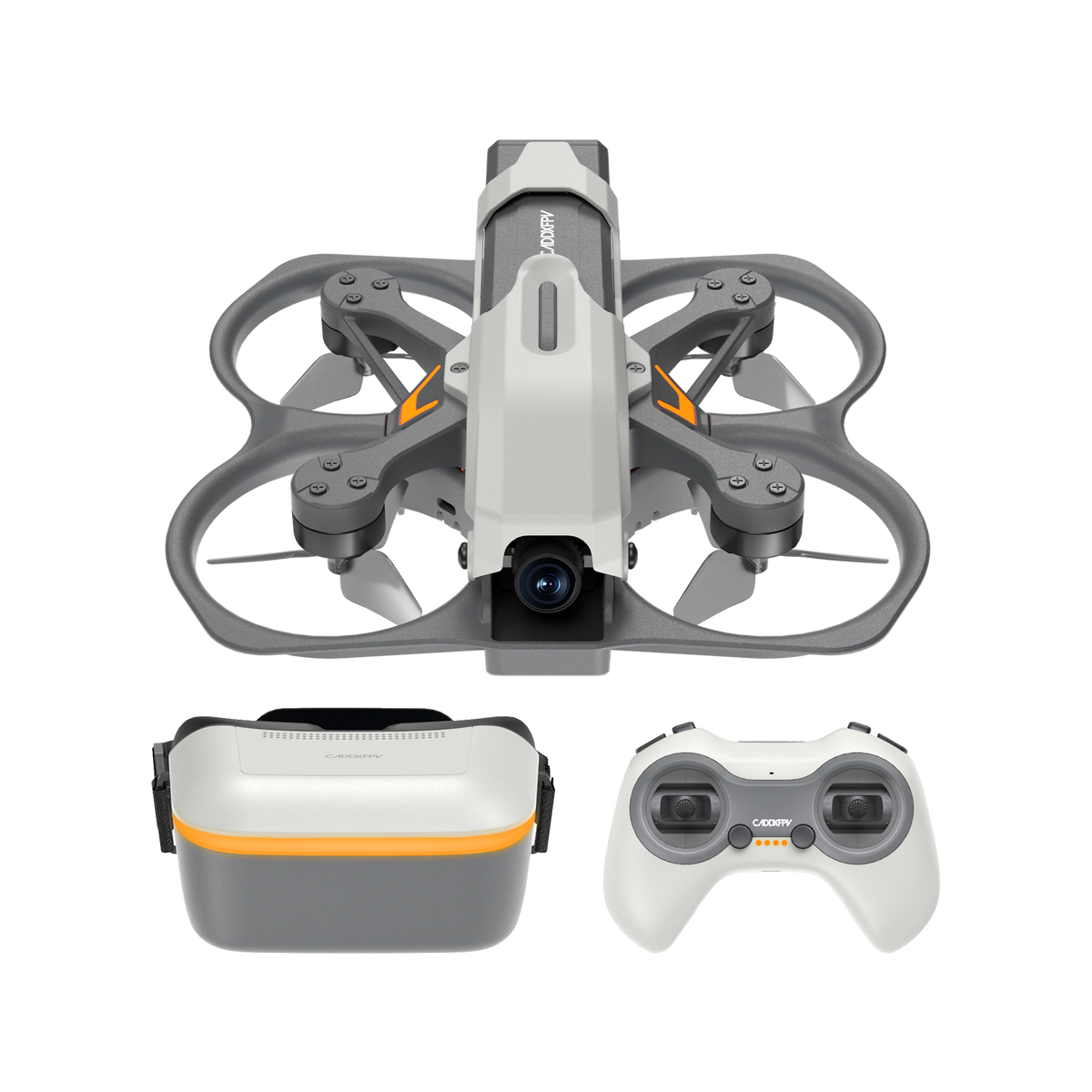

Ready-to-fly FPV freestyle drone kit, including drone, goggles and controller for pilots to start flying digital HD FPV out of the box.
- Brand
- Caddx
- Category
- FPV Drones & Kits
- Package
- Rtf kit
- Authenticity
- 100% genuine
Complete your kit
-
Caddx Curve A30 Charger $45.00
-
Caddx Goggles Battery $49.00
- 100% genuineFrom manufacturers & authorised distributors
- Tracked shippingTracking link by email or WhatsApp
- Warranty & careManufacturer warranty, parts & repairs
Shipping & delivery
Delivery times vary by region and usually take a maximum of 14 working days. A tracking link is sent by email or WhatsApp once your order ships.
Warranty, returns & repairs
Warranty coverage, returns and refunds follow the manufacturer's terms for each product. Spare parts are in the Accessories section, and our team can advise on repairs.
Batteries & flying rules
Lithium batteries ship in line with international carrier and aviation safety rules, which can affect the delivery method and time. Drone rules vary by country and weight class — check with your local civil aviation authority before flying.
Drone
- Flight controller
- Caddx Protos AIO 1.0
- Video transmission
- Ascent Lite
- Motor diagonal distance
- 78 mm
- Motors
- 1102 14000KV
- Propellers
- HQProp U40mm×3
- Weight
- 104.4 ±1.5 g
- Dimensions
- 110 × 102.8 × 41 mm
- Flight time
- 8.5 ±0.5 min
- RC receiver
- ELRS 2.4 GHz
- Flight modes
- 3 (with optical-flow hover)
Flight controller
- Main chip
- STM32F405RGT6
- Gyroscope
- BMI270
- Barometer
- SPL06
- Onboard receiver
- ESP8285 (ELRS 2.4 GHz)
- ESC firmware
- Bluejay / BLHeli_S
- ESC max current
- 12 A per channel
Camera & VTX
- VTX model
- Ascent Lite
- Image sensor
- 1/2.8"
- FOV
- 147°
- Aspect ratio
- 16:9
- Resolution
- 1080p 60fps; 720p 60fps
- Latency
- Avg. 35 ms
- Max range
- 3 km
- Output power
- 25–100 mW
- Built-in storage
- None
Goggles (Ascent)
- Screen
- 4.5 in LCD, 1920×1080 / 60Hz
- Transmission resolution
- 1080p 60fps; 720p 60fps
- Latency
- Avg. 32 ms
- Transmission distance
- >4 km
- Channels
- 8
- Transmitter power (EIRP)
- FCC <30 dBm; CE <14 dBm; SRRC <20 dBm; MIC <25 dBm
- Power input
- 6–25.2 V (2S–6S)
- microSD card
- Up to 256 GB
Remote controller (Alink)
- RF module
- ELRS 2.4 GHz (CRSF)
- Max RF power
- 100 mW (20 dB)
- Channels
- 10 (incl. 4 joystick)
- Gimbals
- Full-bearing Hall-sensor
- Battery
- 1S LiPo 1000 mAh
- Charging
- USB-C, 5 V / 1 A
- Dimensions
- 158 × 108 × 58 mm
- Weight
- 180 ±5 g
Battery
- Type
- Li-ion 2S1P
- Capacity
- 840 mAh
- Energy
- 6.384 Wh
- Discharge rate
- 15C
- Charging time
- ≤20 min
- Weight
- 41.9 ±0.5 g
Charger
- Type
- 2S charger, 3 channels (sequential)
- Input
- 12–15 V PD (5 V not supported)
- Charging power
- Max 25 W
- Weight
- 65 ±0.5 g
From the manufacturer's official specifications.
