DJIMulti-Sensor Thermal Payload

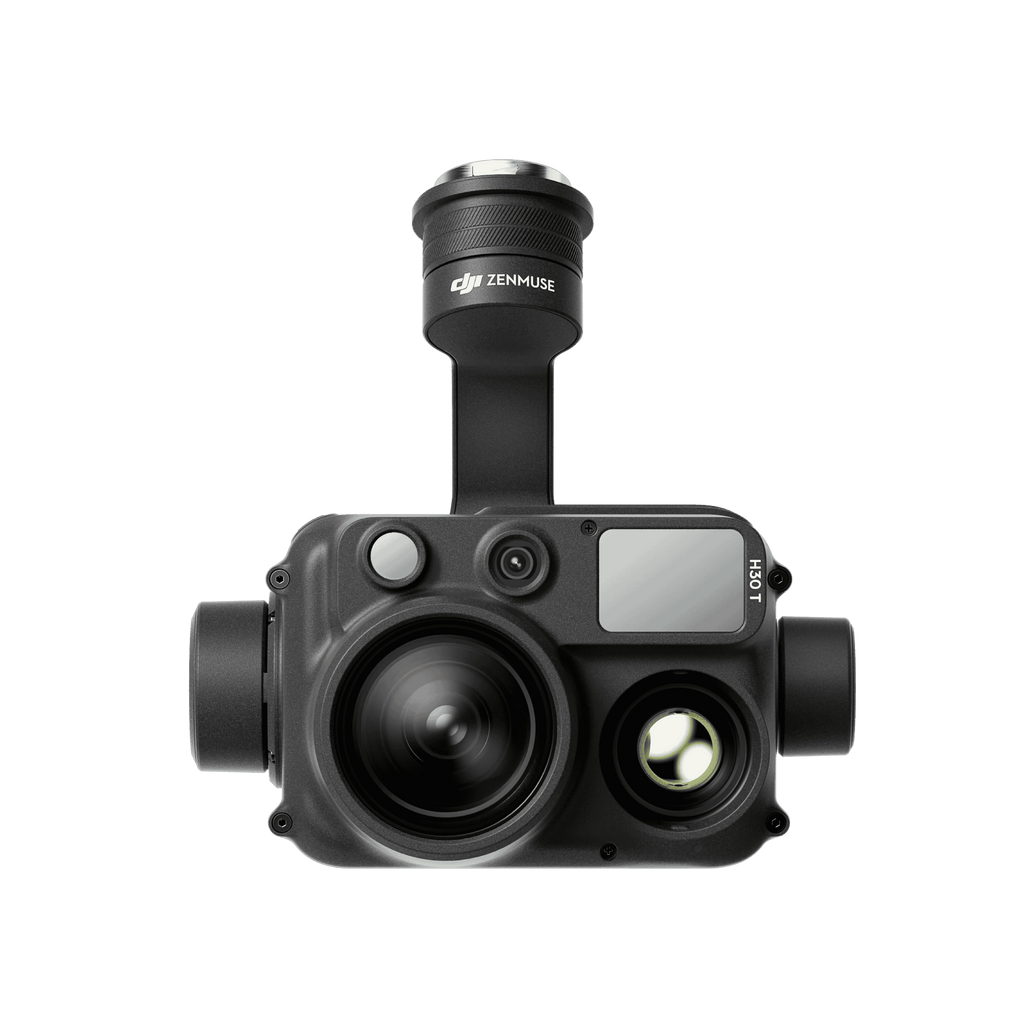

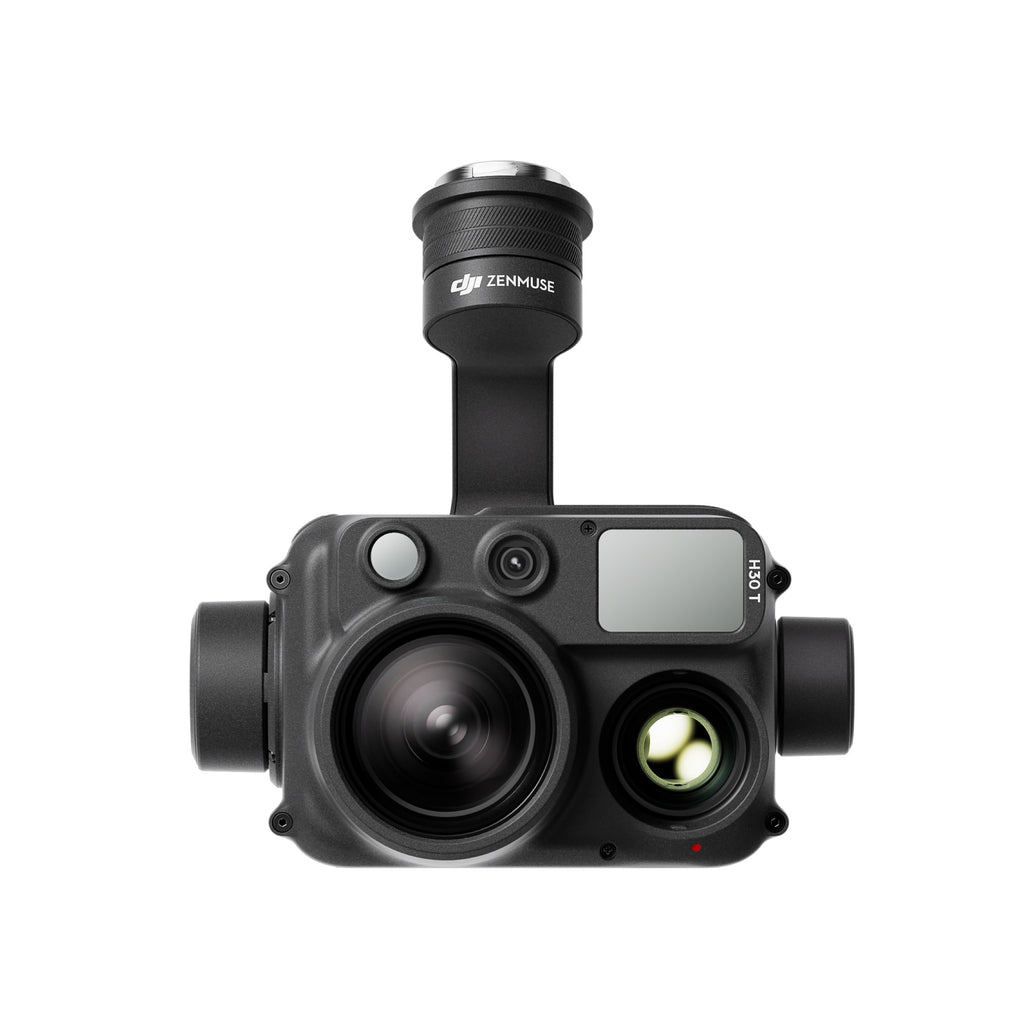

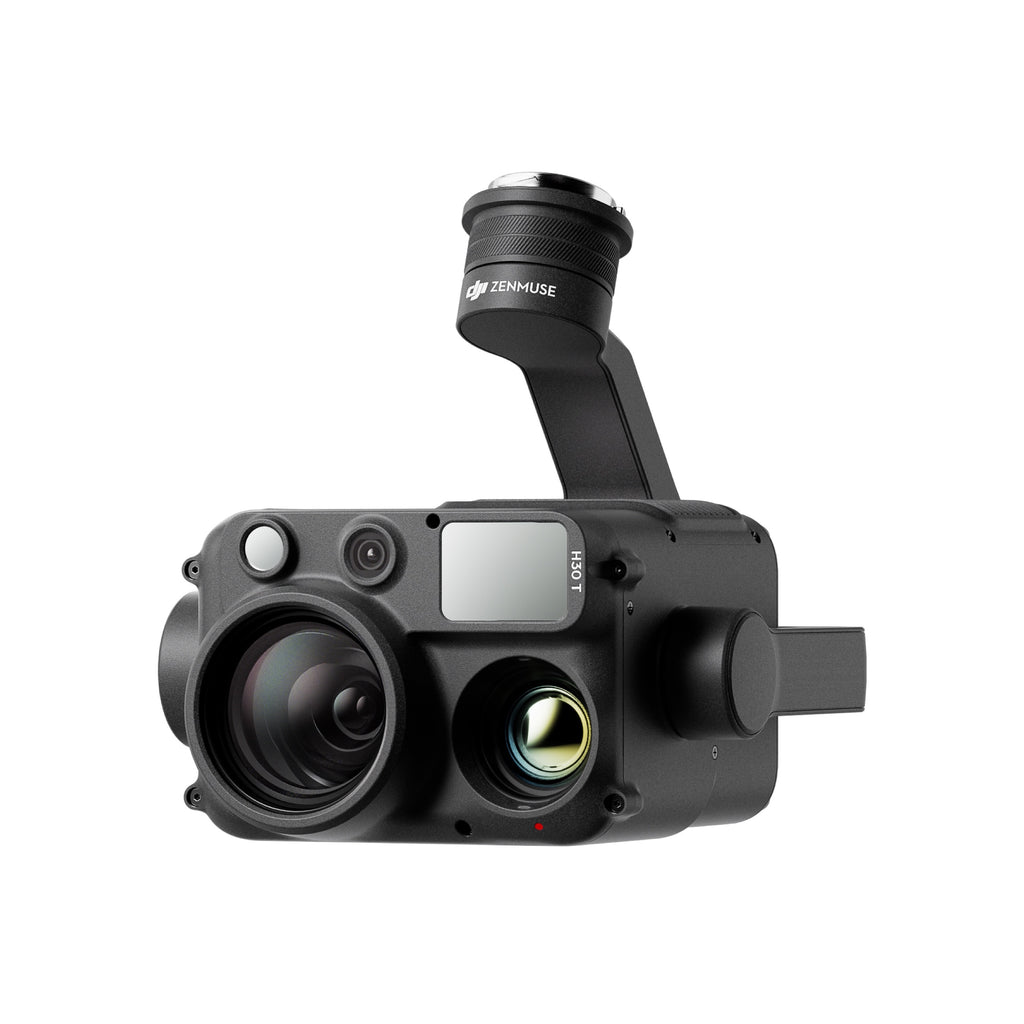

Quote on requestDJI Zenmuse H30T
- 1280×1024 VOx Thermal camera
- 40 MP, 34× hybrid optical Zoom camera
- 3-3000 m Laser range
- 920±5 g Weight
- IP54 IP rating
Thermal variant of the H30 multi-sensor payload, adding radiometric thermal imaging.
- Brand
- DJI
- Category
- Spare Parts & Repair
- Authenticity
- 100% genuine
Pricing for this item is confirmed per order. Send us a request and we'll reply with a quote within 24 hours.
- 100% genuineFrom manufacturers & authorised distributors
- Tracked shippingTracking link by email or WhatsApp
- Warranty & careManufacturer warranty, parts & repairs
Shipping & delivery
Delivery times vary by region and usually take a maximum of 14 working days. A tracking link is sent by email or WhatsApp once your order ships.
Warranty, returns & repairs
Warranty coverage, returns and refunds follow the manufacturer's terms for each product. Spare parts are in the Accessories section, and our team can advise on repairs.
Batteries & flying rules
Lithium batteries ship in line with international carrier and aviation safety rules, which can affect the delivery method and time. Drone rules vary by country and weight class — check with your local civil aviation authority before flying.
General
- Dimensions
- 170×145×165 mm (L×W×H)
- Weight
- 920±5 g
- Power
- 28 W
- Ingress protection rating
- IP54
- Supported aircraft
- Matrice 400; Matrice 350 RTK; Matrice 300 RTK (requires DJI RC Plus)
- Operating temperature
- -20° to 50° C (-4° to 122° F)
Gimbal
- Stabilization
- 3-axis (tilt, roll, pan)
- Angular vibration range
- Hover: ±0.002°; Flight: ±0.004°
- Mounting
- Detachable DJI SKYPORT
- Controllable range
- Tilt: -120° to +60°; Pan: ±320°
Zoom camera
- Sensor
- 1/1.8-inch CMOS, 40 MP
- Focal length
- 7.1-172 mm (33.4-809.3 mm equiv.)
- Aperture
- f/1.6-f/5.2
- DFOV
- 66.7°-2.9°
- Video resolution
- 3840×2160@30fps; 1920×1080@30fps
- Max photo size
- 7328×5496
- ISO range
- 100-25600; Night Scene: 100-819200
Wide-angle camera
- Sensor
- 1/1.3-inch CMOS, 48 MP
- Focal length
- 6.72 mm (24 mm equiv.)
- Aperture
- f/1.7
- DFOV
- 82.1°
- Video resolution
- 3840×2160@30fps; 1920×1080@30fps
- Max photo size
- 8064×6048
Infrared thermal camera
- Thermal imager
- Uncooled VOx microbolometer
- Focal length
- 24 mm (52 mm equiv.)
- Aperture
- f/0.95
- DFOV
- 45.2°
- Digital zoom
- 32×
- Video / photo resolution
- 1280×1024@30fps / 1280×1024
- NETD
- ≤ 50 mK @ f/1.0
- Spectral band
- 8-14 μm
- Temperature range
- High gain: -20° to 150° C; Low gain: 0° to 600° C (up to 1600° C with IR density filter)
Laser range finder
- Wavelength
- 905 nm
- Measurement range
- 3-3000 m
- Accuracy
- ≤ 500 m: ±(0.2 m + 0.15% D); > 500 m: ±1.0 m
NIR auxiliary light
- Wavelength
- 850 nm
- Illumination range
- Approx. 8 m diameter circle @ 100 m
Special features
- Hybrid optical zoom
- 34×
- Max zoom
- 400×
- Night Scene
- Supported
From the manufacturer's official specifications.
