DJILiDAR Payload

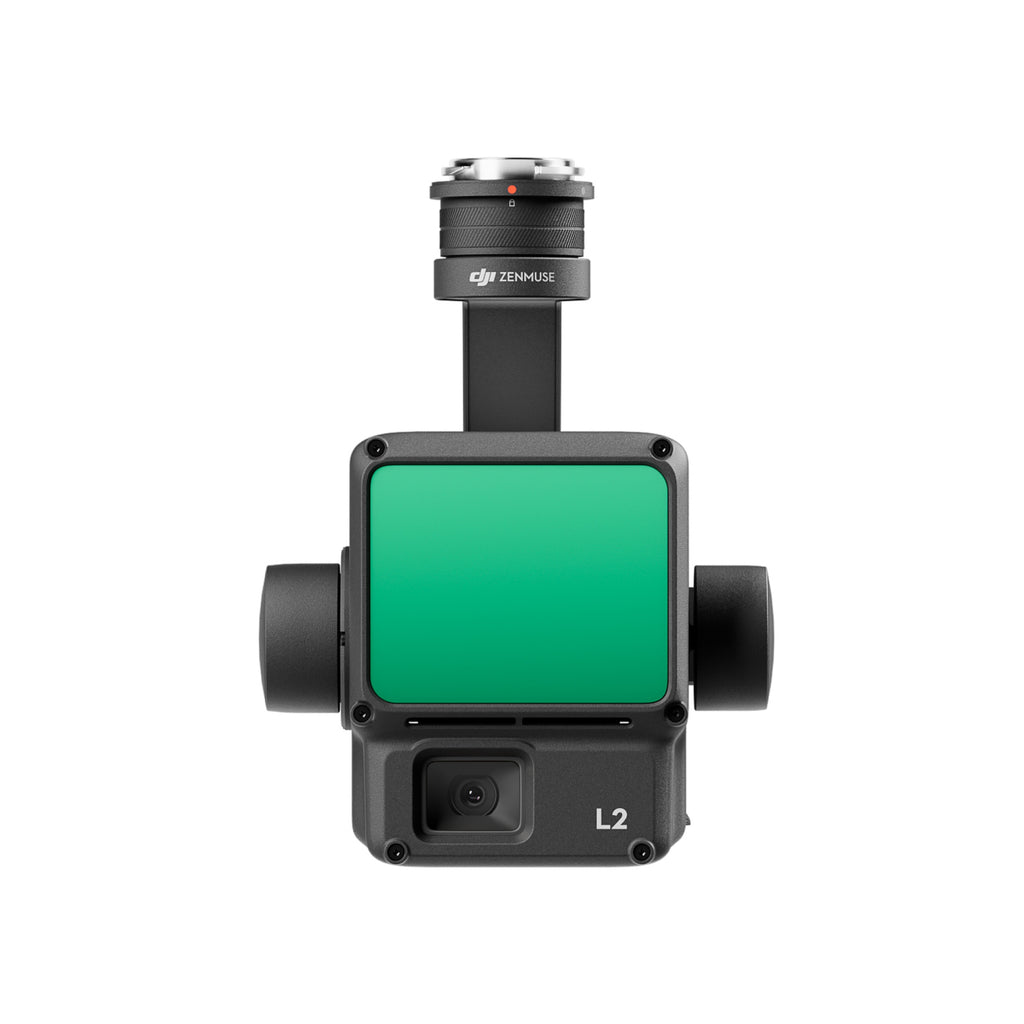

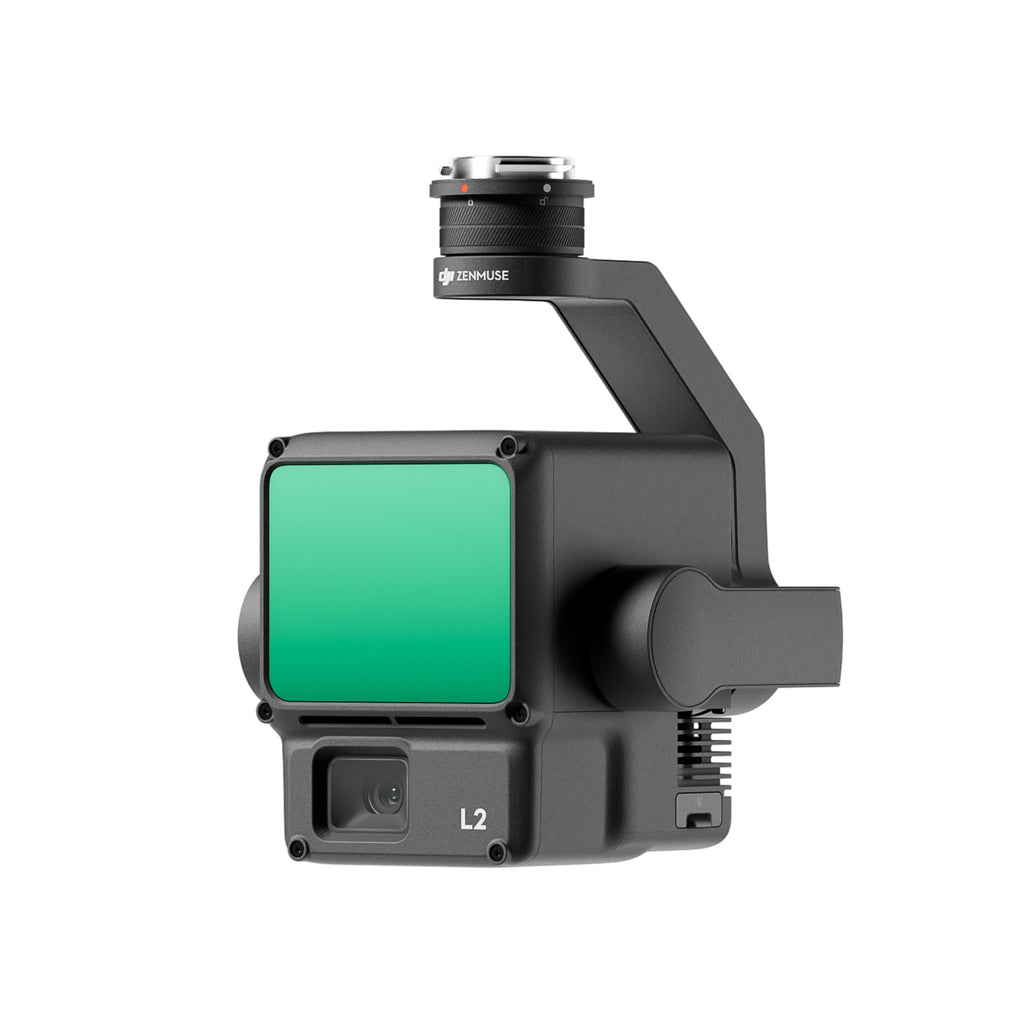

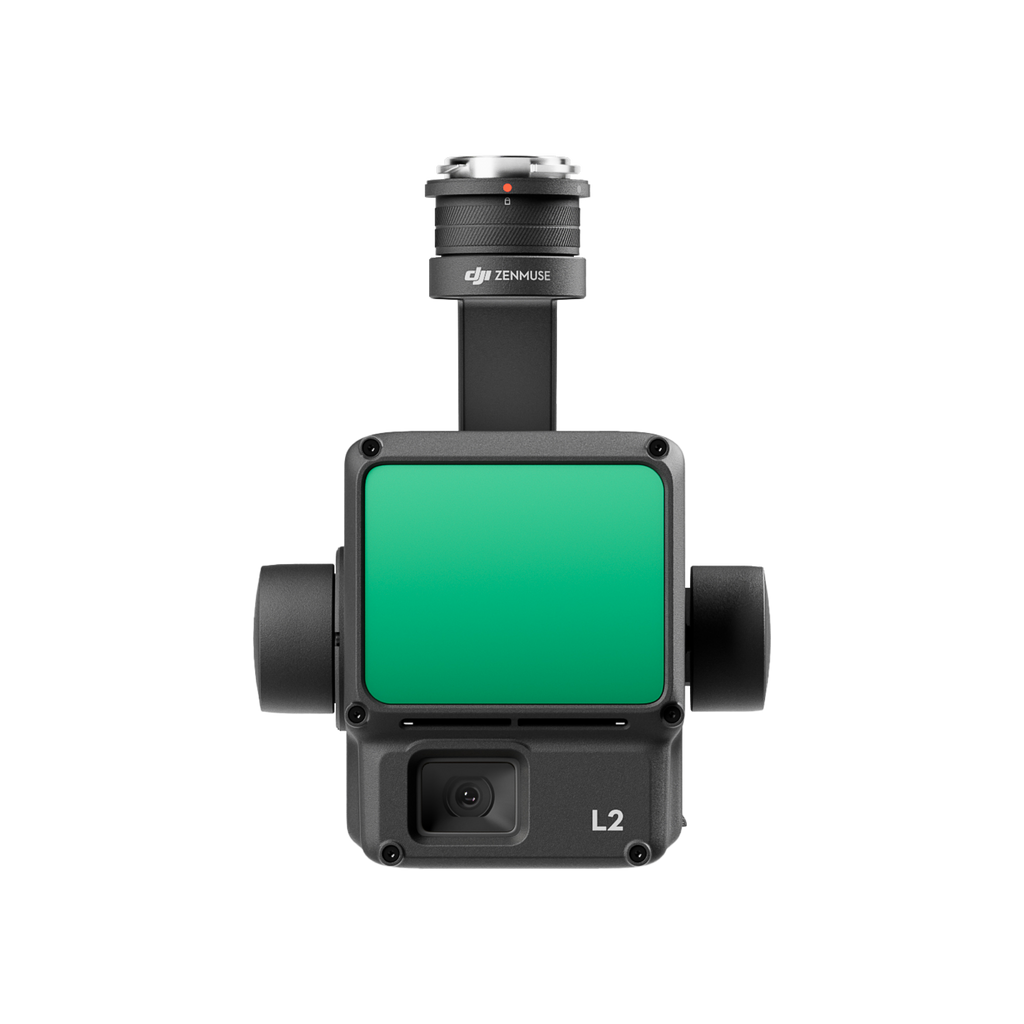

Quote on requestDJI Zenmuse L2
- Up to 1,200,000 pts/s Point cloud rate
- 450 m @ 50% reflectivity Detection range
- 5 cm H / 4 cm V @ 150 m System accuracy
- 905±5 g Weight
- IP54 IP rating
LiDAR + RGB payload for high-precision 3D mapping and surveying.
- Brand
- DJI
- Category
- Spare Parts & Repair
- Authenticity
- 100% genuine
Pricing for this item is confirmed per order. Send us a request and we'll reply with a quote within 24 hours.
- 100% genuineFrom manufacturers & authorised distributors
- Tracked shippingTracking link by email or WhatsApp
- Warranty & careManufacturer warranty, parts & repairs
Shipping & delivery
Delivery times vary by region and usually take a maximum of 14 working days. A tracking link is sent by email or WhatsApp once your order ships.
Warranty, returns & repairs
Warranty coverage, returns and refunds follow the manufacturer's terms for each product. Spare parts are in the Accessories section, and our team can advise on repairs.
Batteries & flying rules
Lithium batteries ship in line with international carrier and aviation safety rules, which can affect the delivery method and time. Drone rules vary by country and weight class — check with your local civil aviation authority before flying.
General
- Dimensions
- 155×128×176 mm (L×W×H)
- Weight
- 905±5 g
- Power
- 28 W (typical); 58 W (max.)
- IP rating
- IP54
- Supported aircraft
- Matrice 400; Matrice 350 RTK; Matrice 300 RTK (requires DJI RC Plus)
- Operating temperature
- -20° to 50° C (-4° to 122° F)
System performance
- Detection range
- 450 m @ 50% reflectivity, 0 klx; 250 m @ 10% reflectivity, 100 klx
- Point cloud rate
- Single return: 240,000 pts/s; Multiple returns: 1,200,000 pts/s
- System accuracy
- Horizontal: 5 cm @ 150 m; Vertical: 4 cm @ 150 m
- Real-time point cloud coloring
- Reflectivity, Height, Distance, RGB
LiDAR
- Ranging accuracy (RMS 1σ)
- 2 cm @ 150 m
- Max returns
- 5
- Scanning modes
- Non-repetitive; Repetitive
- FOV
- Repetitive: 70°×3°; Non-repetitive: 70°×75°
- Min detection range
- 3 m
- Laser wavelength
- 905 nm
- Laser safety
- Class 1 (IEC 60825-1:2014)
IMU system
- IMU update frequency
- 200 Hz
- Positioning accuracy (RTK FIX)
- Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm
RGB mapping camera
- Sensor
- 4/3 CMOS, 20 MP
- Lens
- 24 mm equiv., FOV 84°, f/2.8-f/11
- Shutter
- Mechanical: 2-1/2000 s; Electronic: 2-1/8000 s
- Photo size
- 5280×3956 (4:3)
- Video
- 4K/30fps; FHD/30fps (H.264, H.265)
Gimbal
- Stabilization
- 3-axis (tilt, roll, pan)
- Mounting
- Detachable DJI SKYPORT
- Controllable range
- Tilt: -120° to +30°; Pan: ±90°
Post-processing
- Software
- DJI Terra
- Export formats
- PNTS/LAS/PLY/PCD/S3MB
From the manufacturer's official specifications.
