DJIPhotogrammetry Payload

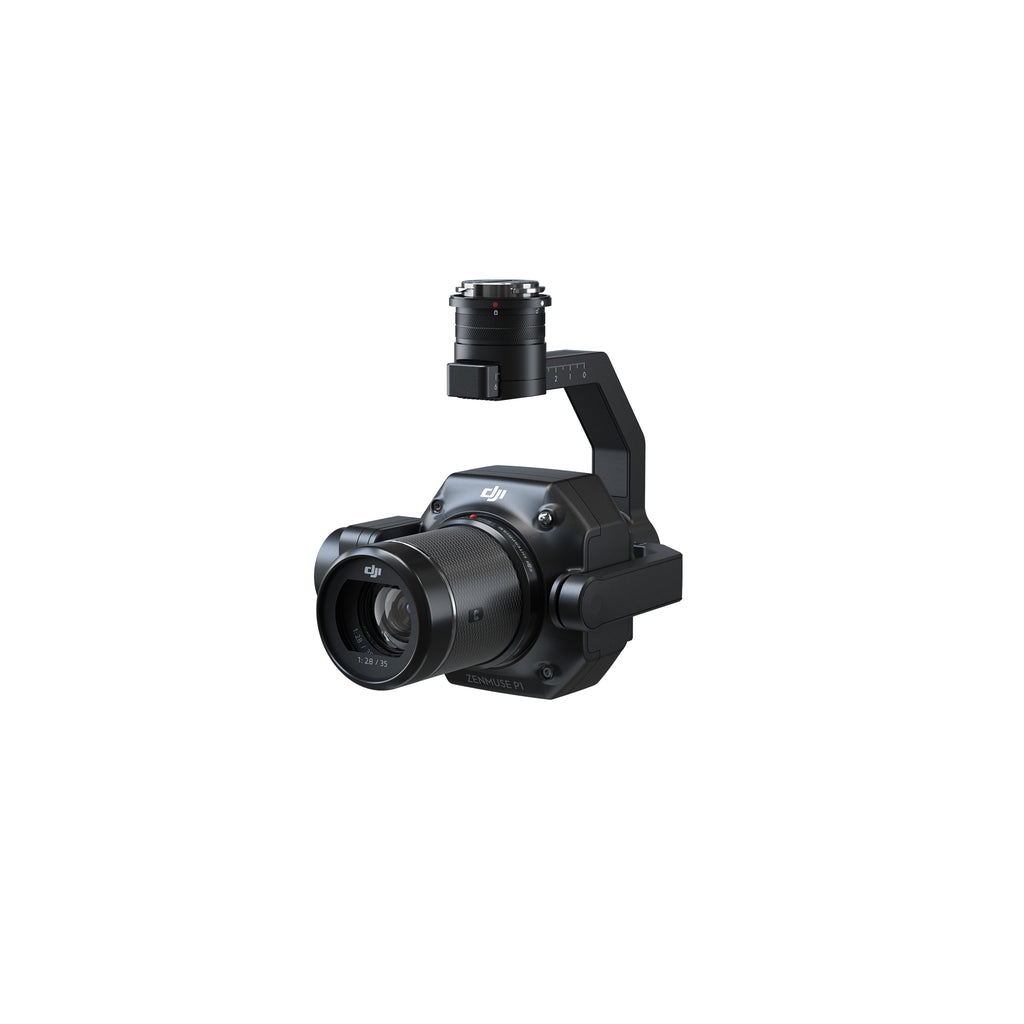

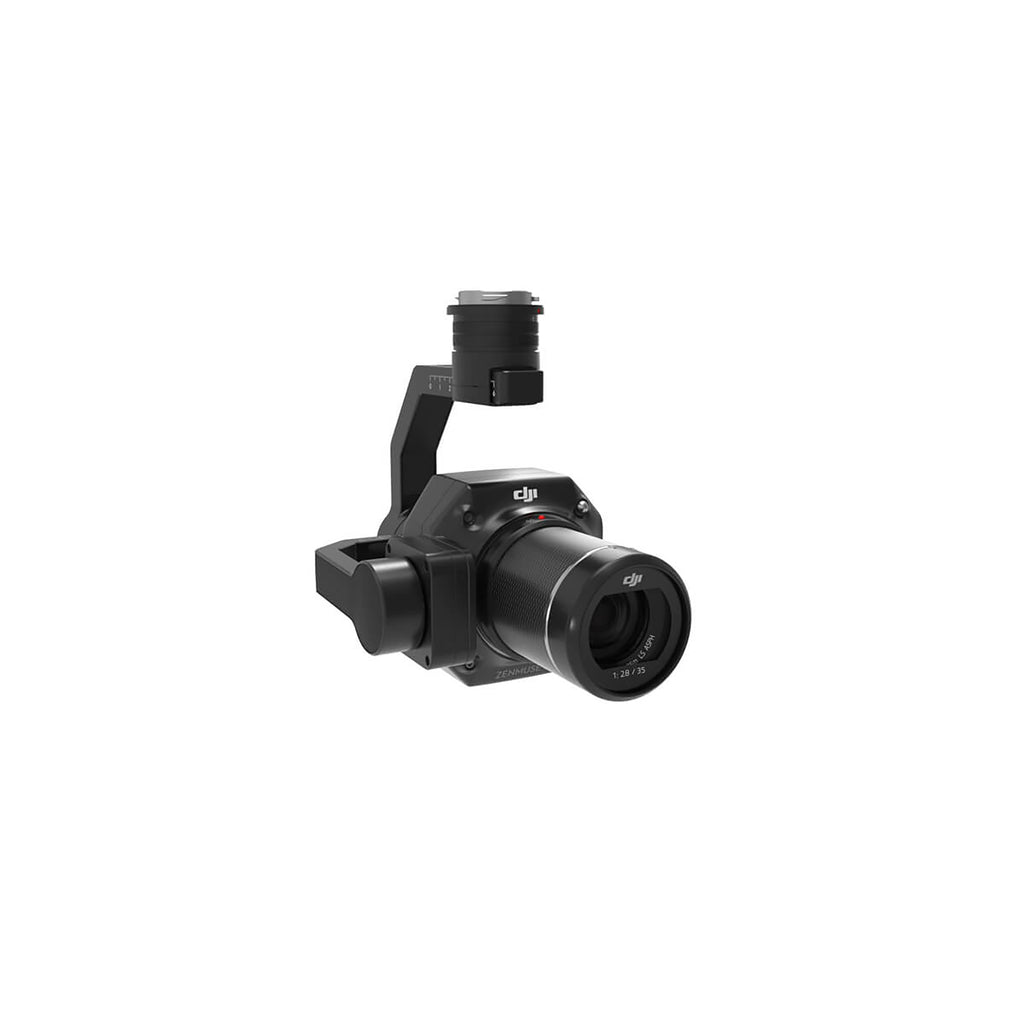

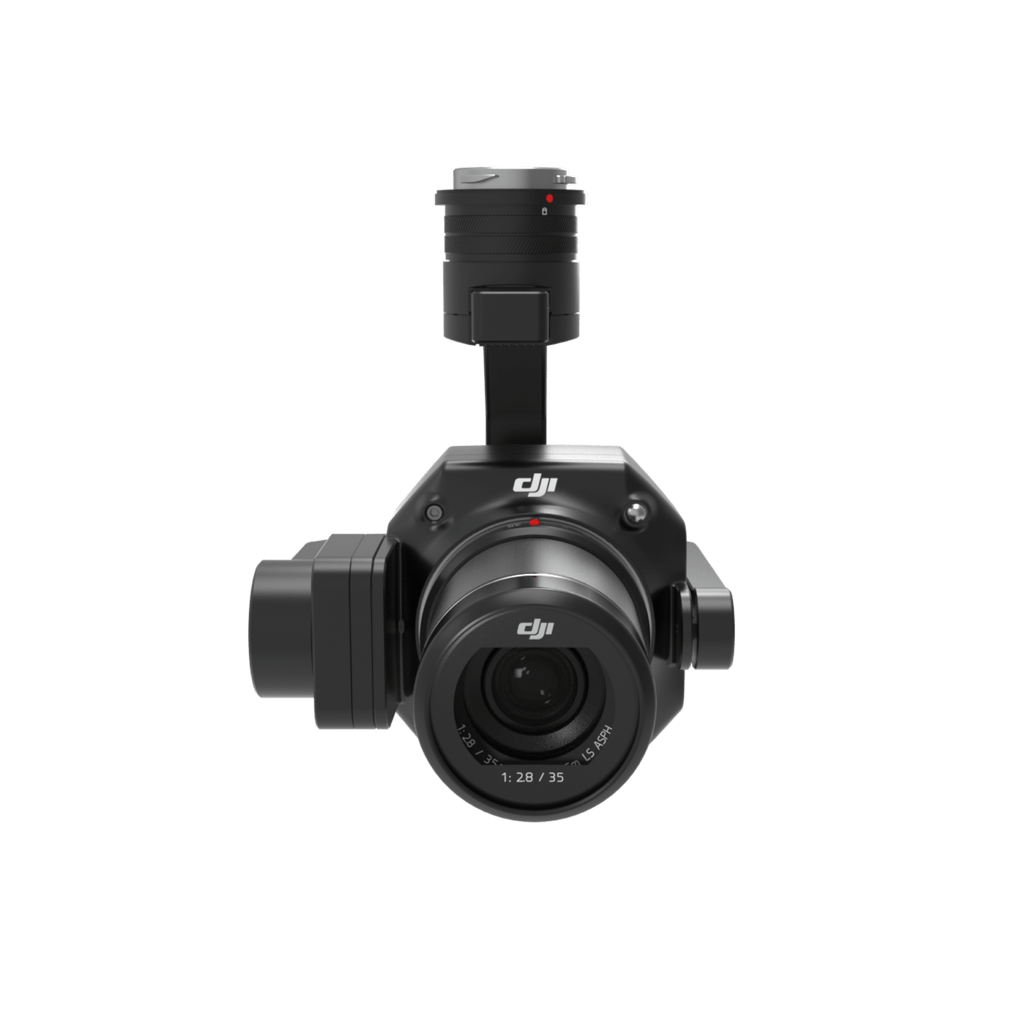

Quote on requestDJI Zenmuse P1
- Full frame, 45 MP Sensor
- 3 cm H / 5 cm V Absolute accuracy
- DL 24/35/50 mm F2.8 Lenses
- Approx. 800 g Weight
- IP4X IP rating
Full-frame photogrammetry camera payload for large-scale aerial mapping.
- Brand
- DJI
- Category
- Spare Parts & Repair
- Authenticity
- 100% genuine
Pricing for this item is confirmed per order. Send us a request and we'll reply with a quote within 24 hours.
- 100% genuineFrom manufacturers & authorised distributors
- Tracked shippingTracking link by email or WhatsApp
- Warranty & careManufacturer warranty, parts & repairs
Shipping & delivery
Delivery times vary by region and usually take a maximum of 14 working days. A tracking link is sent by email or WhatsApp once your order ships.
Warranty, returns & repairs
Warranty coverage, returns and refunds follow the manufacturer's terms for each product. Spare parts are in the Accessories section, and our team can advise on repairs.
Batteries & flying rules
Lithium batteries ship in line with international carrier and aviation safety rules, which can affect the delivery method and time. Drone rules vary by country and weight class — check with your local civil aviation authority before flying.
General
- Dimensions
- 198×166×129 mm
- Weight
- Approx. 800 g
- Power
- 20 W
- IP rating
- IP4X
- Supported aircraft
- Matrice 300 RTK, Matrice 350 RTK, Matrice 400
- Operating temperature
- -20° to 50° C (-4° to 122° F)
- Absolute accuracy
- Horizontal: 3 cm; Vertical: 5 cm (3 cm GSD mapping mission)
Camera
- Sensor
- 35.9×24 mm full frame, 45 MP, 4.4 μm pixels
- Supported lenses
- DJI DL 24mm (FOV 84°); 35mm (FOV 63.5°); 50mm (FOV 46.8°), all F2.8 LS ASPH
- Photo size
- 3:2 (8192×5460)
- Min photo interval
- 0.7 s
- Shutter speed
- Mechanical: 1/2000-1 s; Electronic: 1/8000-1 s
- Aperture range
- f/2.8-f/16
- ISO range
- 100-25600
- Storage
- SD, UHS-I or above, up to 512 GB
Video
- Video format
- MP4, MOV
- Video resolution
- 1920×1080; 3840×2160 (35 mm lens only)
- Frame rate
- 60fps
Gimbal
- Stabilization
- 3-axis (tilt, roll, pan)
- Angular vibration range
- ±0.01°
- Mount
- Detachable DJI SKYPORT
- Mechanical range
- Tilt: -130° to +40°; Roll: ±55°; Pan: ±320°
From the manufacturer's official specifications.
